Threshold Wing Bar

  • Characteristic
  • Parameter
  • Exterior
  • Accessories/accessory tools
  • Downloads
  • Order Code

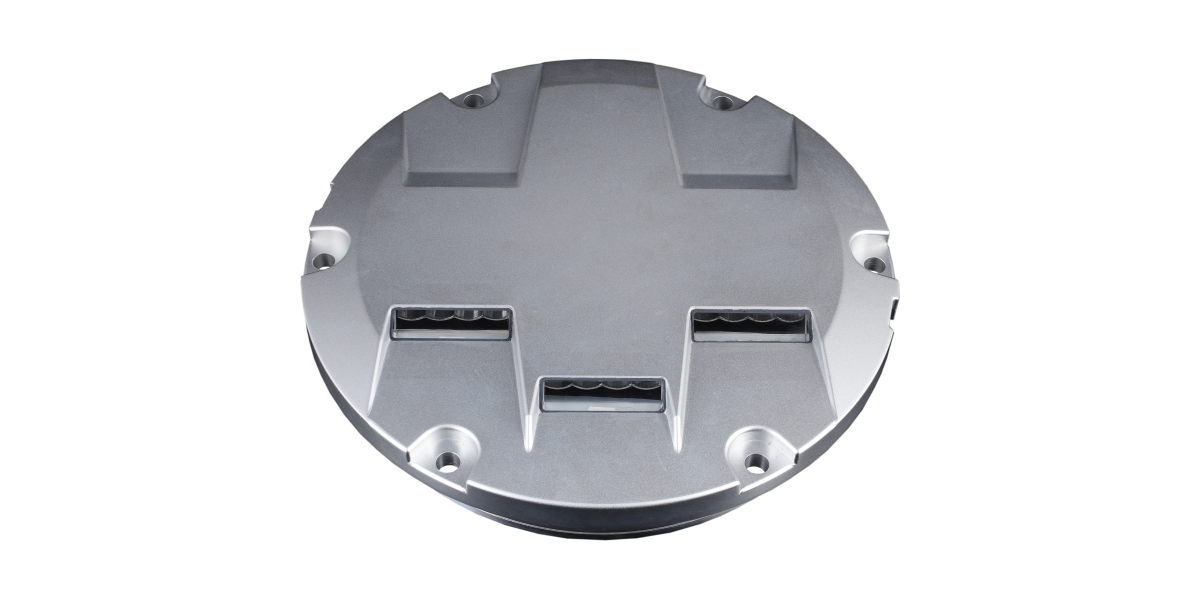

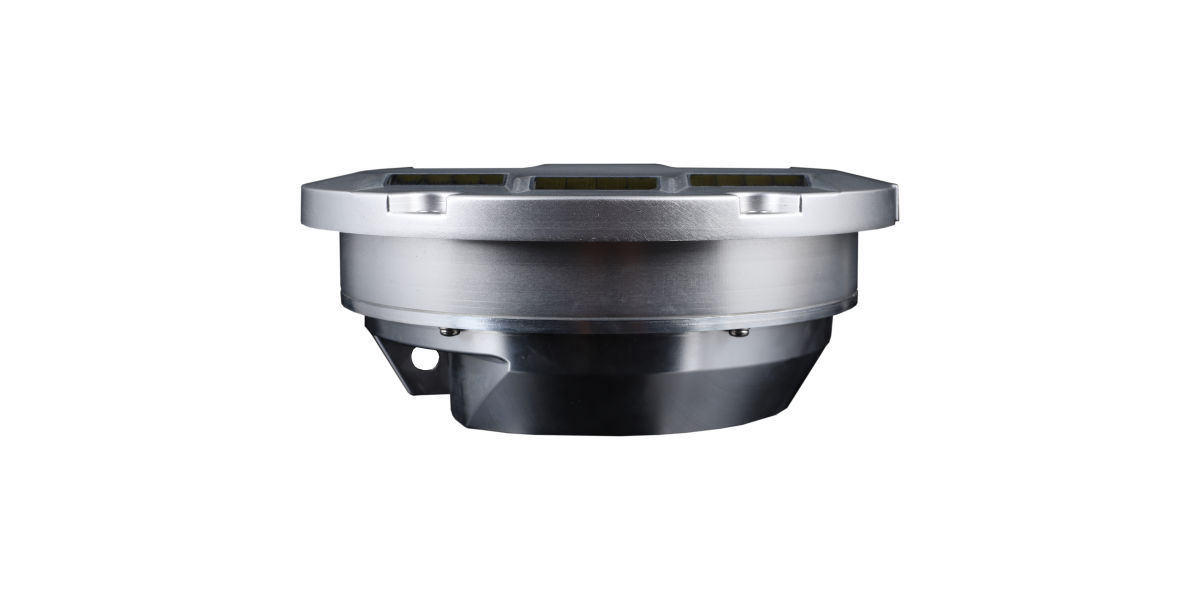

                             ▪   Ultra-Flat surface-Only 6mm above surface

                             ▪   Threshold 3 windows / Runway end 1 or 2 windows, Can be freely combination

                             ▪   All optical and electrical components can be replaced independently and used in all series









MECHANICS

Diameter

304mm

Flange Thickness

19mm

Height Above Surface

6mm

Static Load Resistance

30.3t

Shear Load Resistance

1.7t

Packing Dimensions

390mm×365mm×130mm

Net Weight

6.0kg

Gross Weight

6.6kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP68 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 6, one or two Connectors

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

＞0.97

Power Consumption (Nominal)

THR- Green

34W

TWB-Green

34W

 RWE-Red

15W

THRE-Green/Red-D

34W/19W

THRE-Green/Red-S

48W

Fail Open

Manual reset

Automatic reset





ILB-THR-Green



ILB-TWB-Green



ILB-RWE-Red



COLOR COORDINATES












   ① Top Cover

   ② Sealing Ring

   ③ Optic Module

   ④ Prism Holder

   ⑤ LED Driver Module

   ⑥ Bottom Cover

   ⑦ Power Supply Cable

* THR, TWB have 3 windows;  THRE has 5 windows;

RWE has 1 window;




                                                                                                           On 12’’ Shallow Base








     ILB









Light Structure

ILB: Inset 12" Light










Function / Application

THR: Threshold Lights

TWB: Threshold  Wing Bar Lights

RWE: Runway End Lights

THRE: Threshold and Runway End Lights

TDZ: Touchdown Zone  Lights

RCL: Runway Center Line Lights

RETIL: Rapid Exit Taxiway Indicator Lights










Color- 1

 G: Green, R: Red, N: No Output, W: White, Y: Yellow










Color- 2

 R: Red, N: No Output, G: Green, W: White, Y: Yellow










Inputs

1: Single Input

2: Dual Input










Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open










Prism

C: Conventional Prism

S: Sapphire Prism










Top Cover

S: Standard Cover

R: Reinforced Cover










Version

1: Version 1











ORDERING CODE NOTES

① We We can provide color including "G","R","Y","GR","RG","GN","NG","WN","W","NW"，

if you have any other requirements,we can customized. Figure1


   Figure1



- If you want to order "A" light,  you should choose the color "GN"

- If you want to order "B" light,  you should choose the color "G"

- If you want to order "C" light,  you should choose the color "NG"

- If you want to order "D" or "F" light,  you should choose the color "GR"

- If you want to order "E" or "G" light,  you should choose the color "RG"

- If you want to order "H" light,  you should choose the color "R"

- If you want to order "I" light,  you should choose the color "WN"

- If you want to order "J" light,  you should choose the color "W"

- If you want to order "K" light,  you should choose the color "NW"




② Sapphire prism available as an option. Figure2                         ③ Reinforced cover. Figure3


图片.png                图片.png

      Figure 2                                                                      Figure 3
