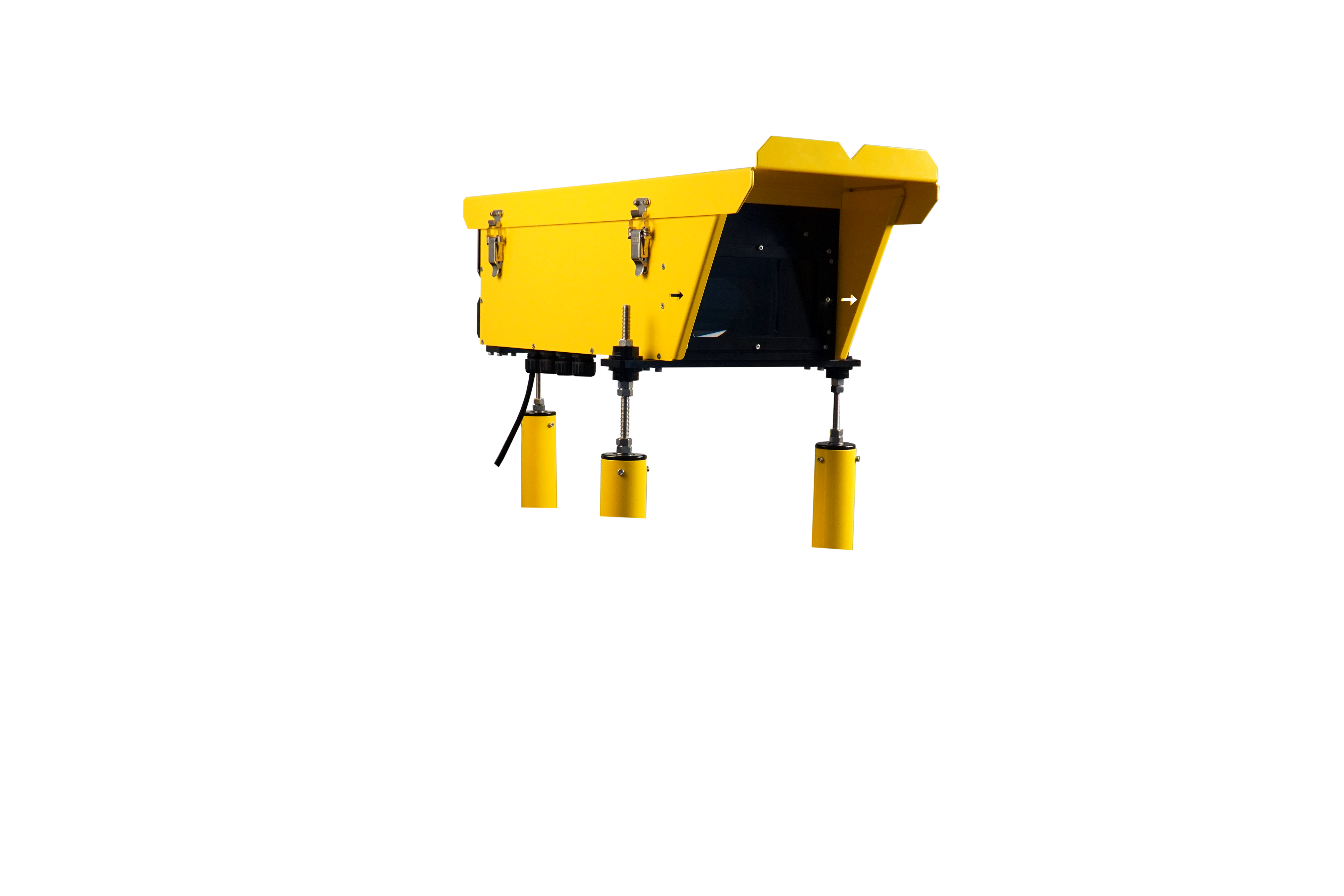

LED PAPI

  • Characteristic
  • Parameter
  • Exterior
  • Accessories/accessory tools
  • Downloads
  • Order Code




                             ▪   LED technology enables a long lifetime and minimal maintenance

                             ▪   LED light source provides a sharp red/white transition line at all intensities.

                             ▪   Built-in high inclinometer with a digital display indicates the vertical angle with a resolution of 0.01°. The unit can be aimed at any angle up to 10%.

                             ▪   Sealed optical module can be removed/replaced quickly without removing the housing.

                             ▪   Power consumption of each unit is 55W

                             ▪  Optional arctic Kits











MECHANICS(EACH UNIT)

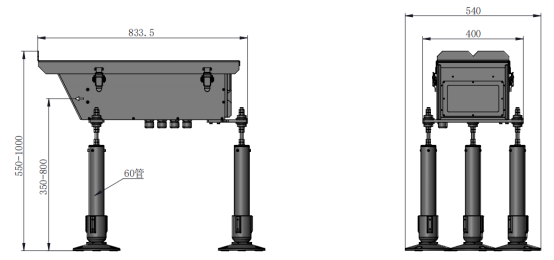

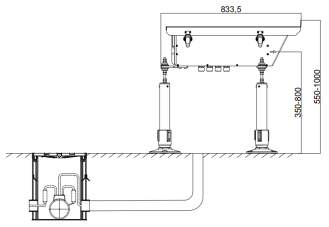

Dimensions


Length 834mm; Width 540mm（Height 550mm~1000mm adjustable）

Packing Dimensions


1100mm×650mm×500mm

Net Weight

32kg

Gross Weight

41kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Wind Loading

＞161 km/h

Protection Class (Dust/Liquids)

IP65 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Power Input

2.8-6.6Aeff AC


Inclinometer


Rang -10°～+10°，Resolution 0.01°，Precision ±0.02°

Tilt Detection

When a unit light beam is downward against a preset elevation

angle between 0.25° and 0.5° or upward against between 0.5°

to 1° for about 30 seconds, the system will power off, and the

alarm signal of "The system is off" is issued by the standard

communication interface.


Light Source Fault Detection

When a unit due to a light source failure, the main light beam of

the unit is less than 50% of the initial light intensity, the system

will power off, and the alarm signal of "The system is off" is

issued by the standard communication interface.

Power Consumption (Each Unit)

55W





ELG-PAPI-C(L)





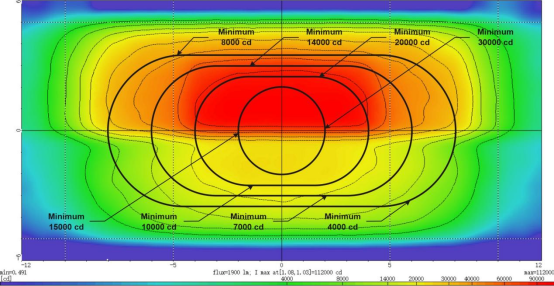

COLOR COORDINATES

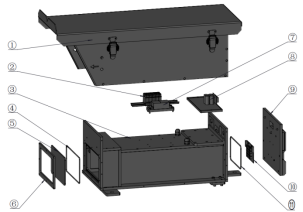

① Top Hood

② Connecting terminal

③ Optical Chamber

④ Front Sealing Ring

⑤ Front Glass

⑥ Glass Fixture

⑦ Inclinometer

⑧ Driver Module

⑨ Rear Plate

⑩ Optical Module

⑪ Rear Sealing Ring









                                                                                                                                         ELG-PAPI-C(L)

  • Date Sheet
  • Product Manuals
  • Certificate
DOWNlOAD FILES
DOWNlOAD FILES
