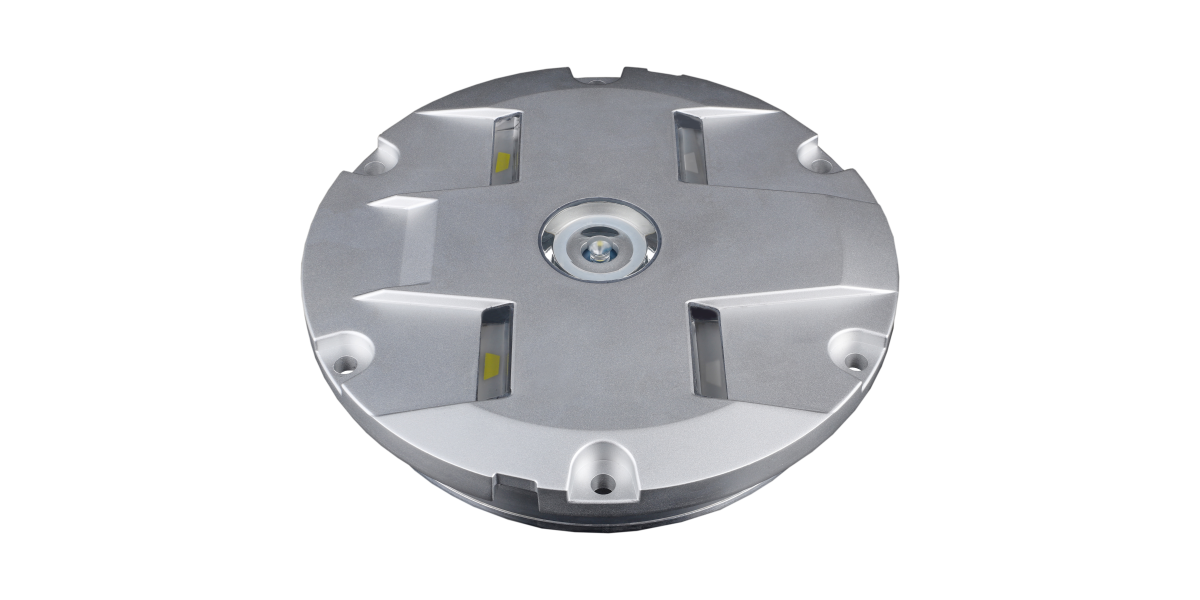

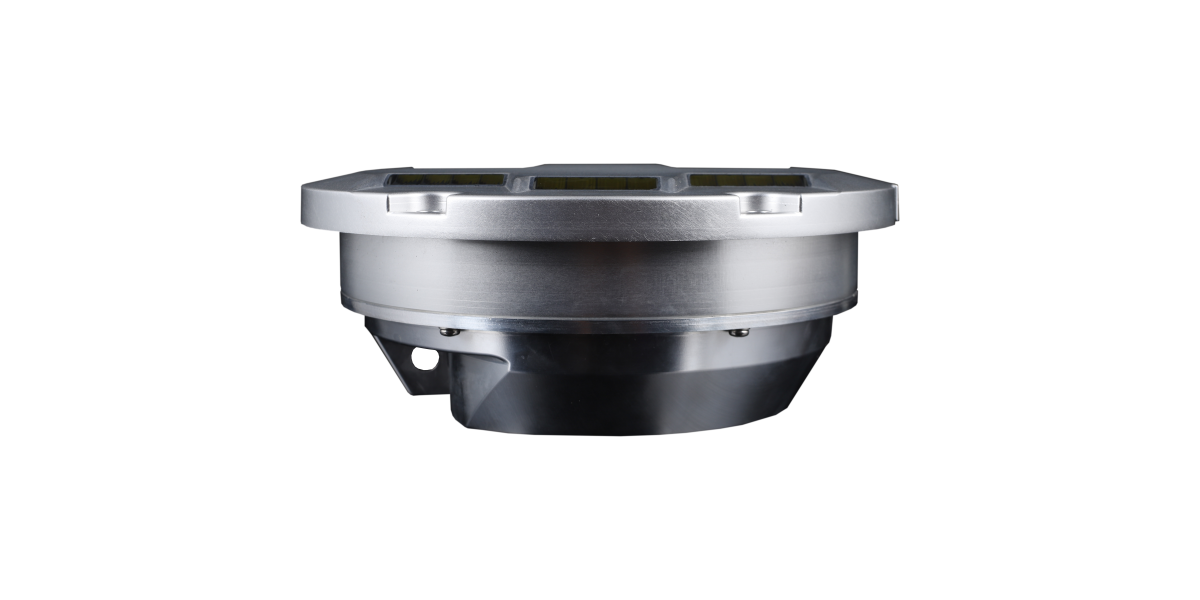

Runway Edge Light(Inset)

  • Characteristic
  • Parameter
  • Exterior
  • Accessories/accessory tools
  • Downloads
  • Order Code





                              ▪    Low protrusion top cover-Only 6mm above surface

                              ▪    Available with the Omnidirectional Circling Guidance module meeting the requirement of vertical 0°~15° 50cd light intensity

                              ▪   All optical and electrical components can be replaced independently and used in all series








MECHANICS

Diameter

304mm

Flange Thickness

19mm

Height Above Surface

6mm

Static Load Resistance

30.3t

Shear Load Resistance

1.7t

Packing Dimensions


390mm×365mm×130mm

Net Weight

6.0kg

Gross Weight

6.6kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP68 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 6, one  Connector

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

＞0.97

Power Consumption (Nominal)

REH-White/Yellow

53W

REH-White/White

58W

REH-White/Red

39W


REH-Yellow/Red

34W


REH-White/Yellow-Omni White

58W


REH-White/White-Omni White

63W


REH-White/Red-Omni White

44W


REH-Yellow/Red-Omni White

39W

Fail Open

Manual reset

Automatic reset





ILB-REH-White





ILB-REH-Yellow









ILB-REH-Red







ILB-REH-Omni White






COLOR COORDINATES















① Top Cover

② Optic Module (Omni)

③ Sealing Ring

④ Optic Module (Uni)

⑤ Prism Holder

⑥ Driver Module

⑦ Bottom Cover

⑧ Power Supply Cable


















             On 12’’ Deep Base












     ILB









Light Structure

ILB: Inset 12" Light










Function / Application

REH-O: Runway Edge  Lights(With Circling Guidance Light)

REH: Runway Edge Lights










Color- 1

W: White, Y: Yellow, R: Red










Color- 2

W: White, Y: Yellow, R: Red










Inputs

1: Single Input

2: Dual Input










Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open










Prism

C: Conventional Prism

S: Sapphire Prism










Top Cover

S: Standard Cover

R: Reinforced Cover










Version

1: Version 1














ORDERING CODE NOTES


① With Circling Guidance Light,Figure1


Figure1


② We can provide color including


 "WY","YW","WW","WR","RW", "YR","RY",

if you have any other requirements,we can customized. Figure2



- If you want to order "A" light,  you should choose the color "YR"

- If you want to order "B" light,  you should choose the color "RY"

- If you want to order "C" light,  you should choose the color "YW"

- If you want to order "D" light,  you should choose the color "WY"

- If you want to order "E" light,  you should choose the color "WW"

- If you want to order "F" light,  you should choose the color "WR"

- If you want to order "G" light,  you should choose the color "RW"




Figure2


③ Sapphire prism available as an option. Figure3                        ④ Reinforced cover. Figure4


图片.png                图片.png

      Figure 3                                                                      Figure 4
