Taxiway Edge Light(inset)

  • Characteristic
  • Parameter

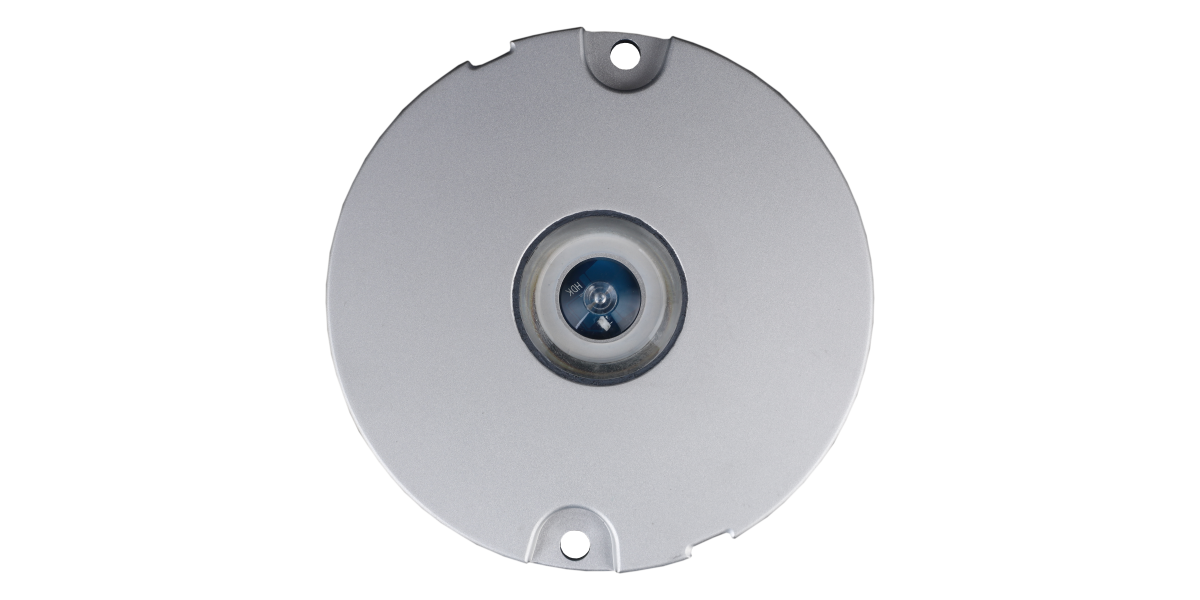

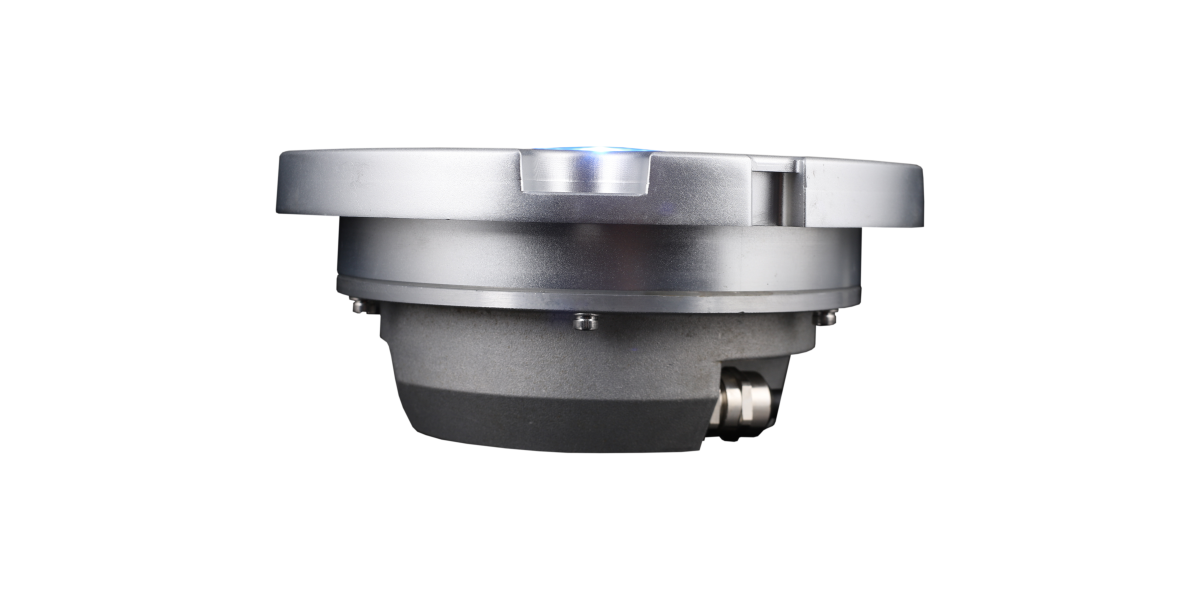

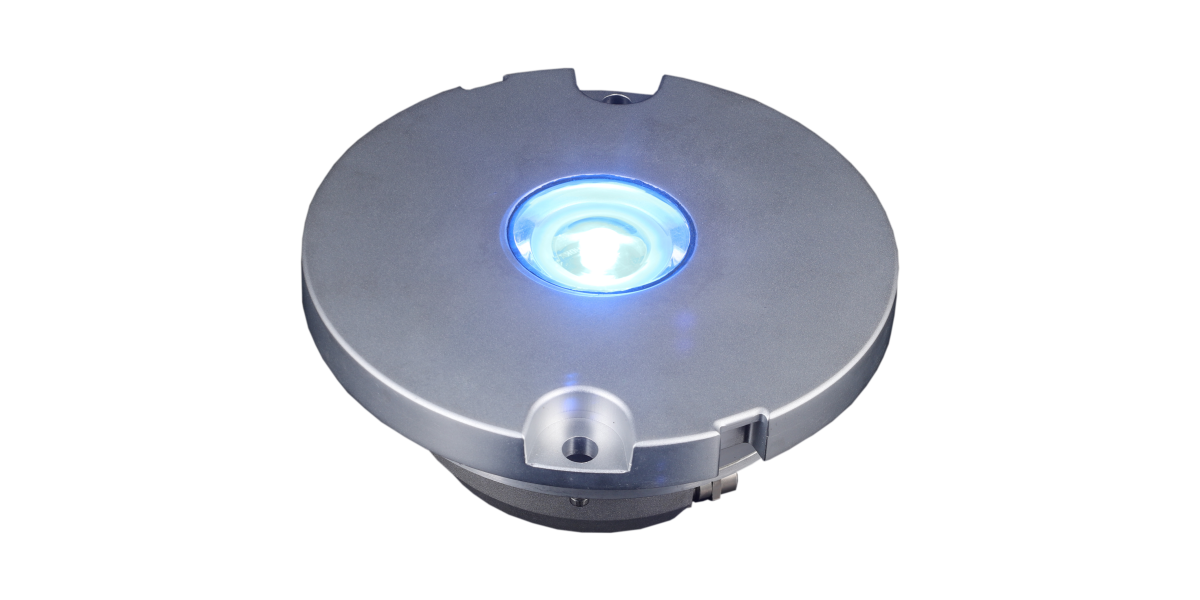

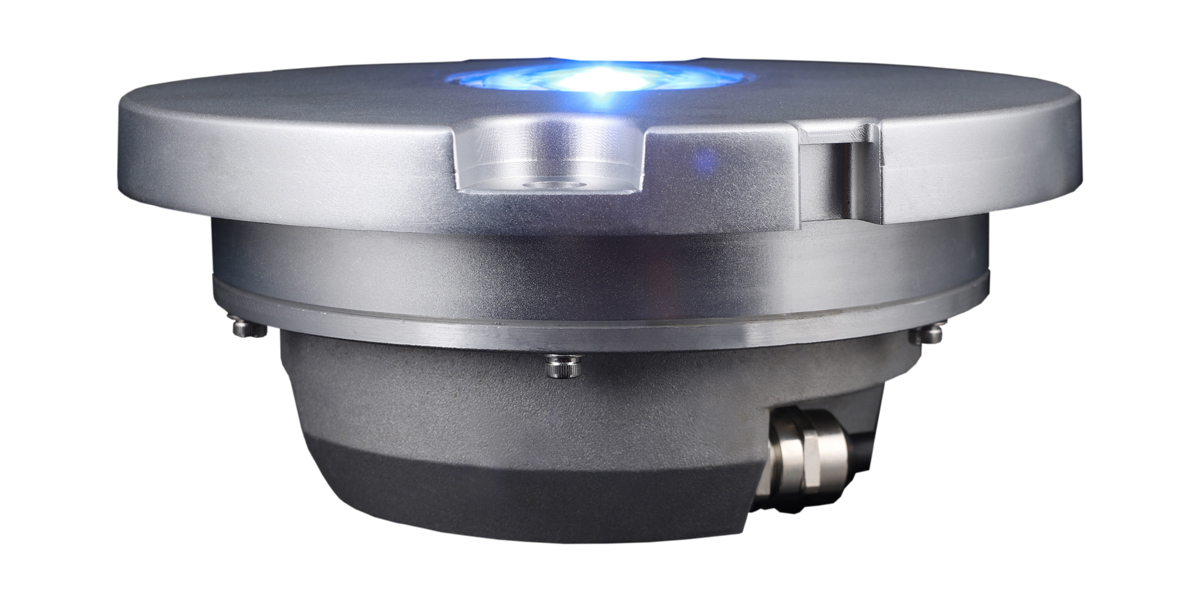

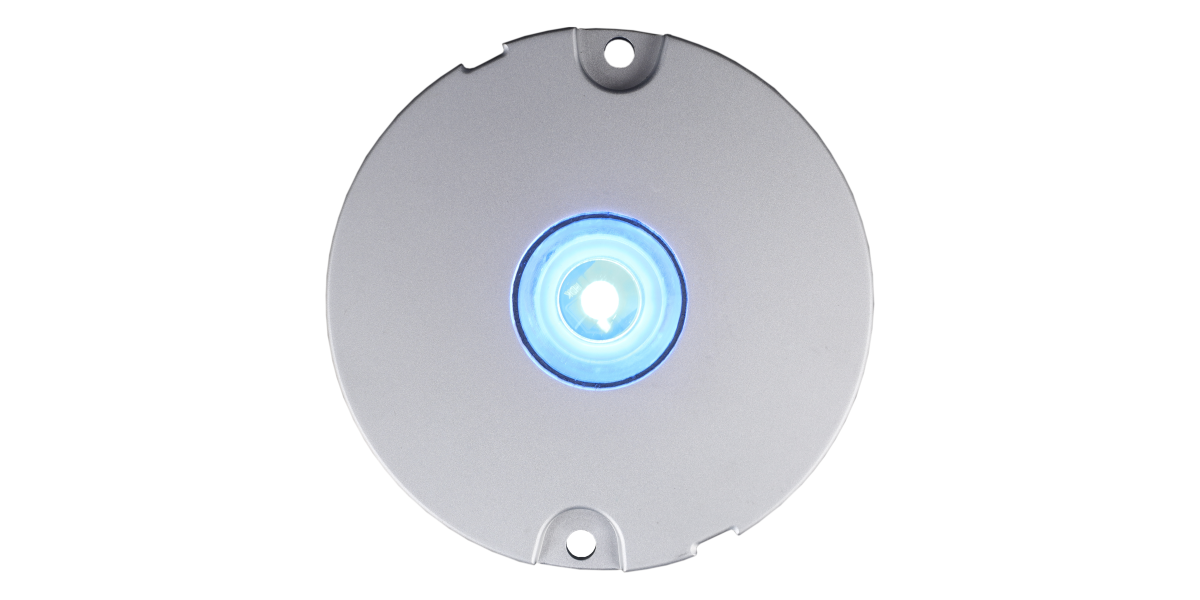

  • Exterior
  • Accessories/accessory tools
  • Downloads
  • Order Code





                             ▪    Ultra-Flat surface-Only 3mm above surface

                             ▪    Fail open with automatic/manual reset are optional

                             ▪   Construct dexterity-can fit the halogen lamp shallow base









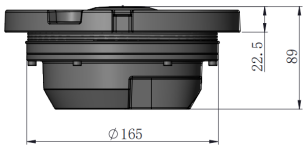

MECHANICS

Diameter

203mm

Flange Thickness

19mm

Height Above Surface

3mm

Static Load Resistance

14t

Shear Load Resistance

1.7t

Packing Dimensions



250mm×235mm×110mm

Net Weight

2.8kg

Gross Weight

3.1kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP68 (IEC60598-1)

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 6, one  Connector

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

>0.97

Power Consumption (Nominal)


TWE-Blue


5.5W

TSL-White

8.5W


SMG-Yellow


17W

Fail Open

Manual reset

Automatic reset






ILC-TWE-Blue



ILC-SMG-Yellow



ILC-TSL-White










ILC-TWE-Blue



ILC-SMG-Yellow



ILC-TSL-White





















① Top Part

② Seal Ring

③ Optic Module

④ Drive Module

⑤ Bottom Pan

⑥ Cable









On 8’’ Shallow Base








               On 12’’ Deep Base









     ILC




  1

   C


Light Structure

ILC: Inset 8" Omni-directional Light










Function / Application

TWE: Taxiway Edge Lights

SMG: Aircraft Stand Manoeuvring Guidance  Lights










Color- 1

B: Blue , Y: Yellow










Color- 2

 N: No Output










Inputs

1: Single Input










Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open










Prism

C: Conventional Prism










Top Cover

S: Standard Cover

R: Reinforced Cover










Version

1: Version 1











ORDERING CODE NOTES

① We can provide color including "B","Y"(B for TWE, Y for SMG), if you have any other requirements,we can customized.

② Reinforced cover. Figure1


       Figure 1
