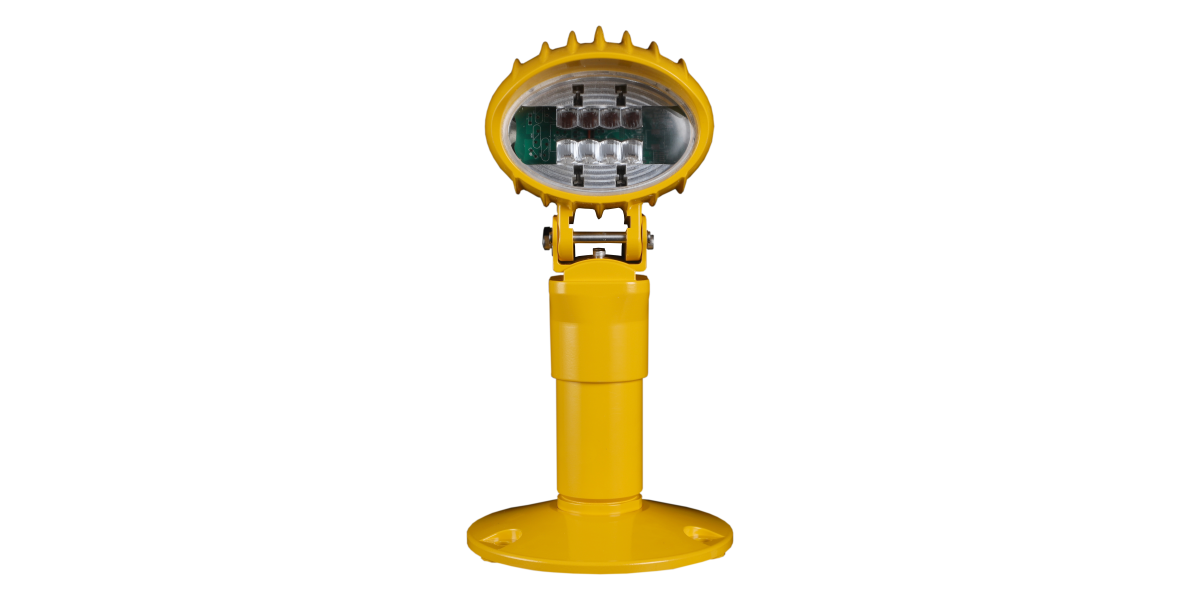

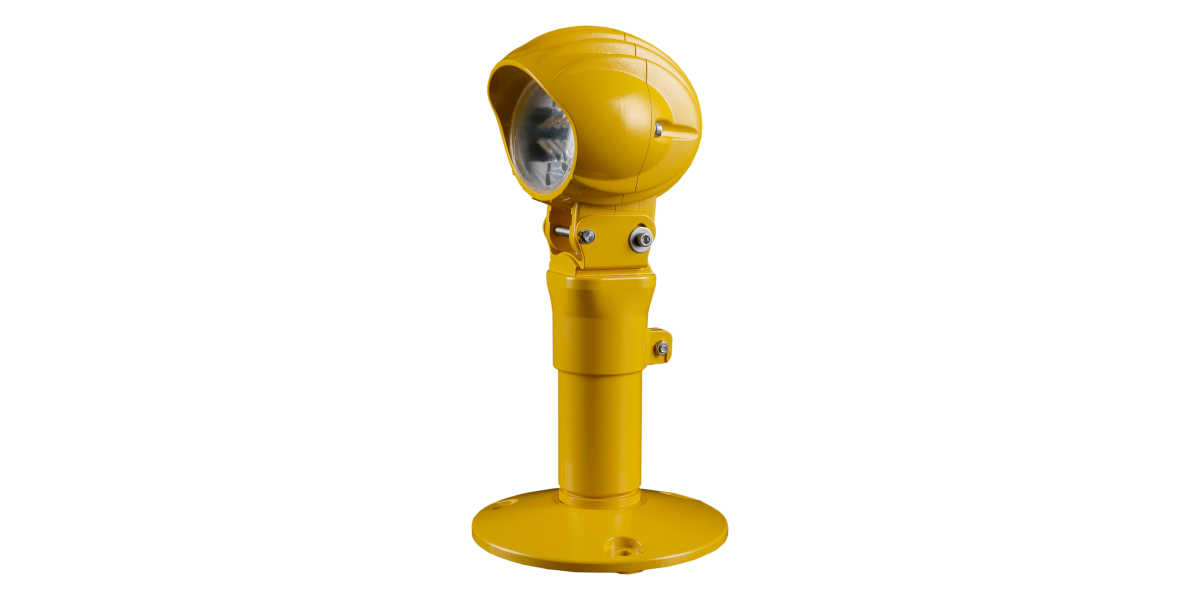

Stop Bar Light

  • Characteristic
  • Parameter
  • Exterior
  • Accessories/accessory tools
  • Downloads
  • Order Code





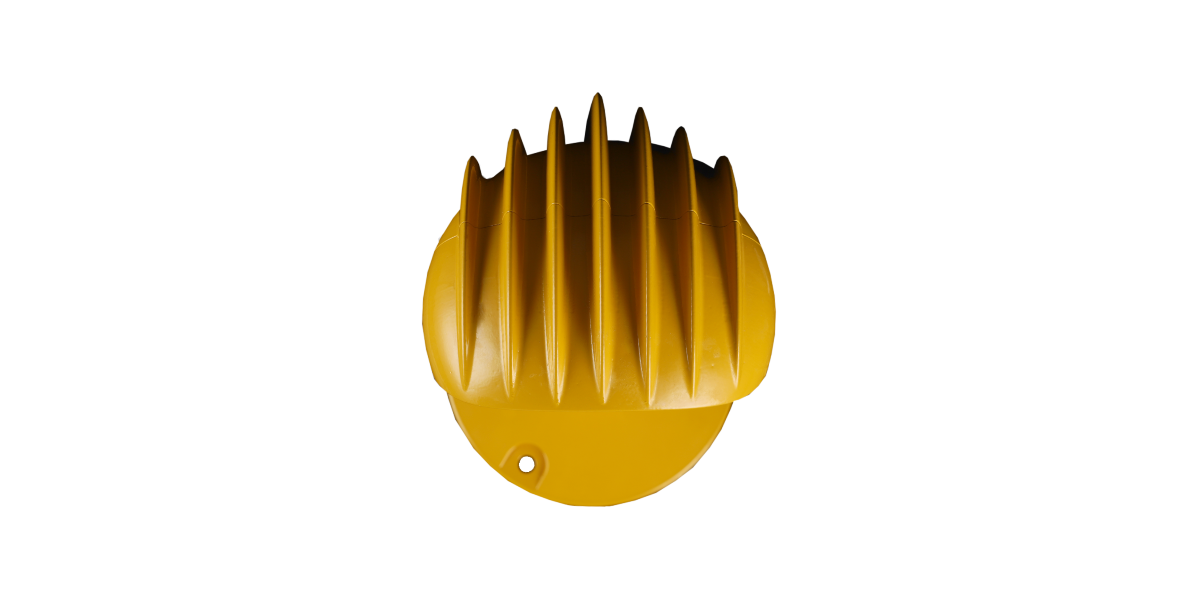

                             ▪   Unique miniaturized design for LED, modular structural, and excellent heat dissipation

                             ▪   Can be combined with the inset stop bar lights, a configuration compatible with ELA-HSTB.

                             ▪   All optical and electrical components can be replaced independently and used in all series

                             ▪   Fail open  with automatic/manual reset is optional.











MECHANICS

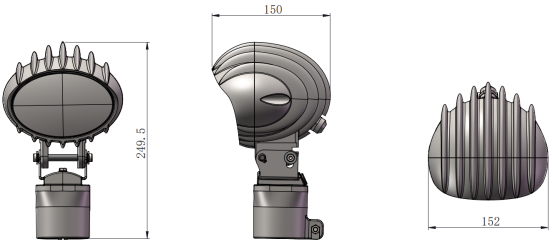

Width

152mm

Height

249.5mm

Packing Dimensions

360mm×225mm×350mm(2pcs/Package)

Net Weight

2.9kg

Gross Weight

6.4kg(2pcs/Package)

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP67 (IEC60598-1)

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 1, one  Connector

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

>0.97

Power Consumption (Nominal)

STB- Red

6.5W

HSTB- Red

15W

Fail Open

Manual reset

Automatic reset





ELA-STB-Red






ELA-HSTB-Red







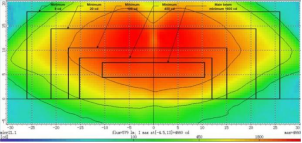

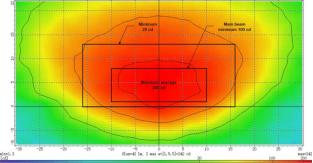

COLOR COORDINATES

















   ①  Front Cover

   ② Sealing Ring

   ③ Optic Module*

   ④ HLED Driver Module

   ⑤ Back Cover

   ⑥ Power Supply Cable

   ⑦ Adjustable Installation Module

*HSTB has 2 optic modules;

STB has 1under optic module;















                                                                                                     On Extension Pole






                 On 12’’ Deep Base










     ELA


R





Light Structure

ELA: Elevated Uni-directional  Light










Function / Application

STB: Stop Bar










Color- 1

R: Red










Color- 2

N: No Output










Inputs

1: Single Input

2: Dual Input










Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open










Coupling

0: No coupling

1: Coupling Ⅰ (140mm height)

2: Coupling Ⅱ (Adjustable height)










Base plate

0: No base plate

1: Base plate Ø 187 mm

2: Base plate Ø 304 mm










Version

1: Version 1











ORDERING CODE NOTES

① We can provide color including "R",if you have any other requirements,we can customized.

②Coupling.Figure1


③Base plate. Figure2



图片.png                图片.png

      Figure 1                                                                      Figure 2









  • Date Sheet
  • Product Manuals
  • Certificate
