Threshold Wing Bar
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic




                             ▪   Ultra-Flat surface-Only 6mm above surface

                             ▪   Threshold 3 windows / Runway end 1 or 2 windows, Can be freely combination

                             ▪   All optical and electrical components can be replaced independently and used in all series






Parameter

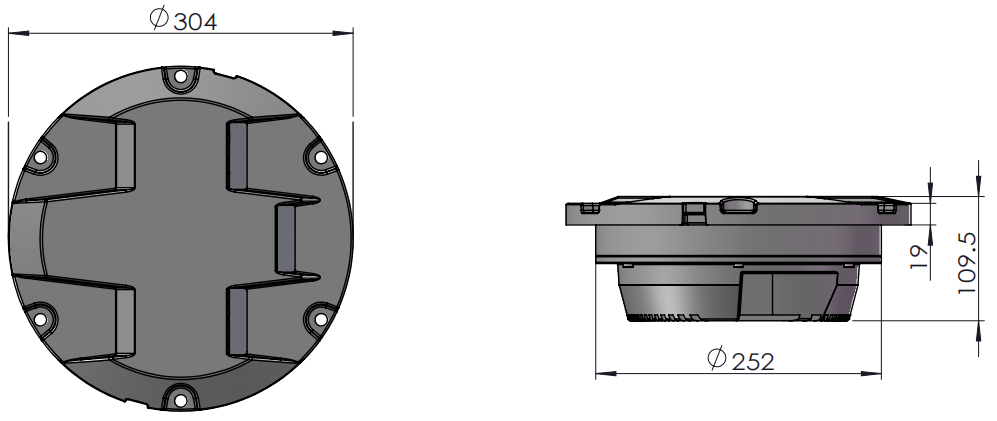

MECHANICS

Diameter

304mm

Flange Thickness

19mm

Height Above Surface

6mm

Static Load Resistance

30.3t

Shear Load Resistance

1.7t

Packing Dimensions

390mm×365mm×130mm

Net Weight

6.0kg

Gross Weight

6.6kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Protection Class (Dust/Liquids)

IP68 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 6, one or two Connectors

Power Input

2.8-6.6Aeff AC

Power Factor (Nominal)

＞0.97

Power Consumption (Nominal)

THR- Green

34W

TWB-Green

34W

 RWE-Red

15W

THRE-Green/Red-D

34W/19W

THRE-Green/Red-S

48W

Fail Open

Manual reset

Automatic reset





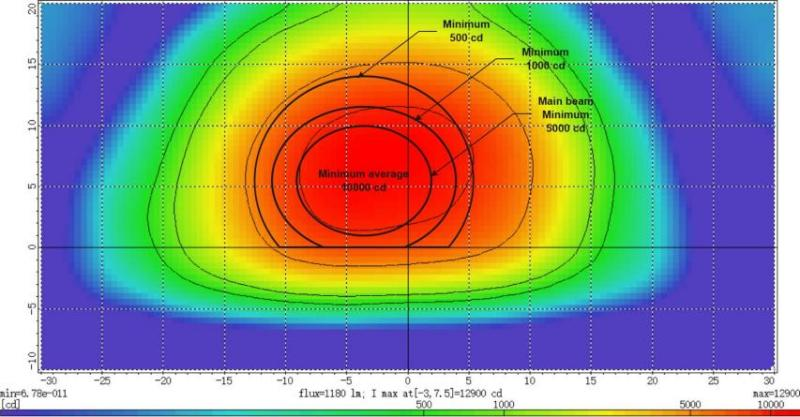

ILB-THR-Green



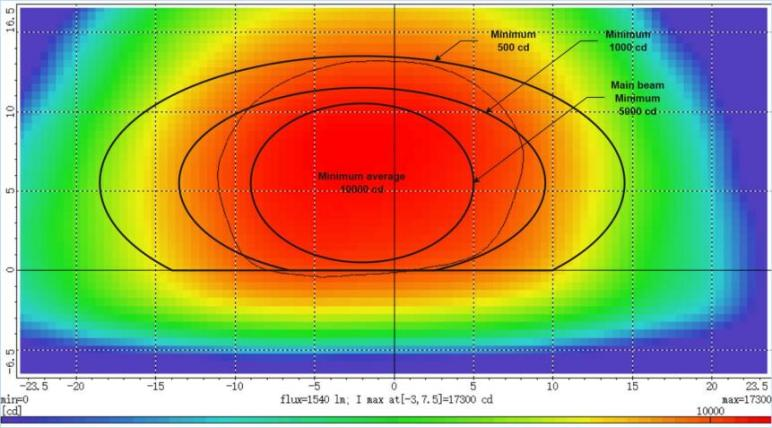

ILB-TWB-Green



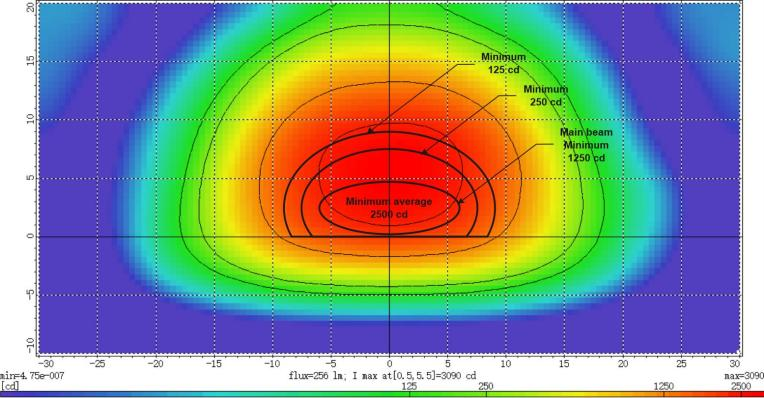

ILB-RWE-Red

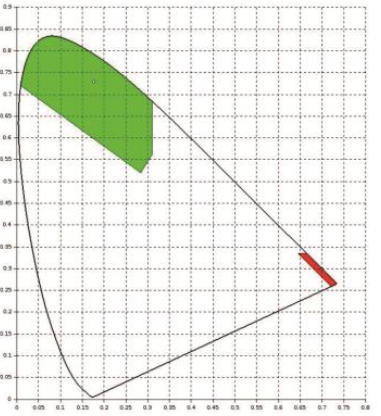

COLOR COORDINATES




Exterior

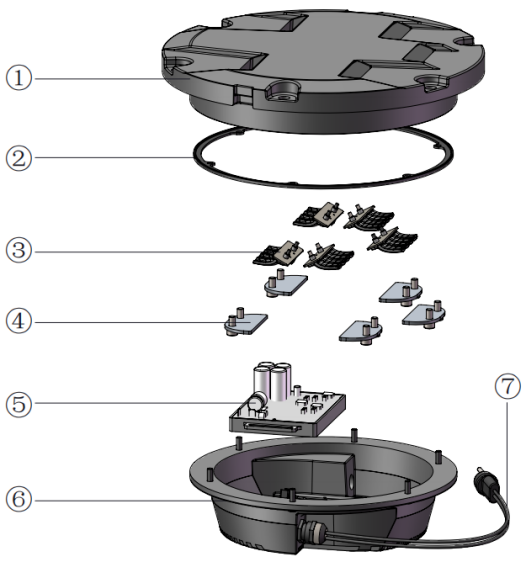

   ① Top Cover

   ② Sealing Ring

   ③ Optic Module

   ④ Prism Holder

   ⑤ LED Driver Module

   ⑥ Bottom Cover

   ⑦ Power Supply Cable

* THR, TWB have 3 windows;  THRE has 5 windows;

RWE has 1 window;




                                                                                                           On 12’’ Shallow Base





Accessories/accessory tools
Downloads

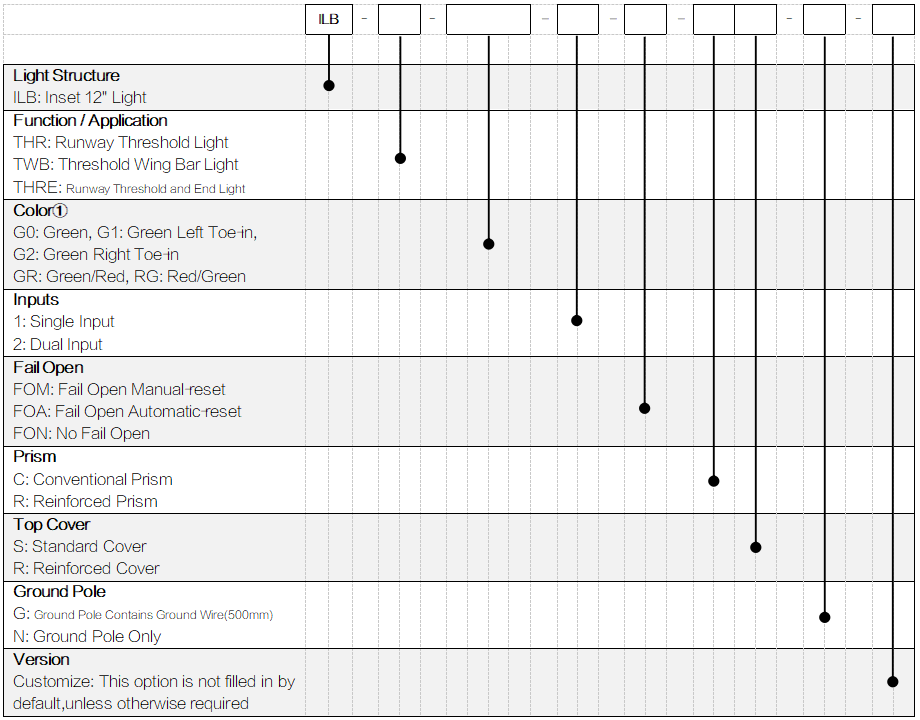

Order Code
