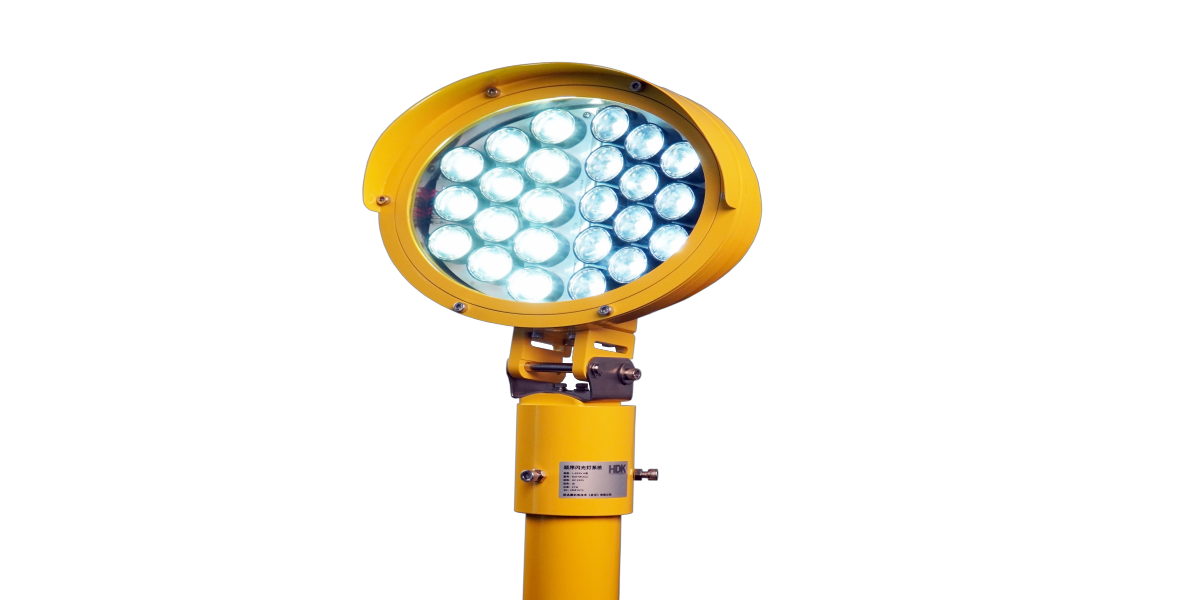

Runway Threshold Identification led

Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code

Characteristic

▪ Both of inset and elevated sequence flash lights use a highly efficient LED light source. Meet all kinds of use requirements

▪ Adopt special aviation connector, Cable plug is stable and durable and easy to plug

▪ Support the emergency mode, flashing autonomously when the communication is interrupted

▪ Support maintenance mode, The main control cabinet can be made offline to any separate control panel as the host independent work and debugging

▪ Control cabinet LCD touch screen display, intuitive and easy to operate

Parameter

MECHANICS

Size (Elevated)

263mm×138.5mm×362mm

Size (Inset)

Body Diameter: 304mm ； Flange Thick: 19mm；

Control Box Size

400mm×300mm×219.2mm

Control Cabinet Size

599mm×600mm×1468mm

Range of Elevation Angle

0°～10°

Light Net Weight

Elevated :4.2kg; Inset:6.5kg

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Wind Loading

ELE-RTIL(L) ＞480km/h； ELE-SFLS(L)＞240km/h

Protection Class (Dust/Liquids)

Elevated

IP65（IEC 60598-1）

Inset

IP68（IEC 60598-1）

Humidity

0-100%

Altitude

Suitable for an altitude greater than 2500m

ELECTRICAL

Power Input

AC 220V(±10%)，50~60Hz

Light Color

White

Flashing Rate

60 or 120 per minute

Flash Interval

0.0167 second

Power Consumption

Elevated

31W

Inset

31W

Light Intensity

Elevated

150~450 cd

800~2000 cd

8000~20000 cd

Inset

150~600 cd

500~2000 cd

5000~20000 cd

Exterior


Elevated


Inset


Control Box


Control Cabinet

Elevated


Inset

① Visor

② Front glass Module

③ Seal Ring

④ Optic Module

⑤ Pin Board

⑥ Rear Cover Module

⑦ Installation Adjustment Module

① Top Part

② Seal Ring

③ Optic Module

④ Pinboard

⑤ Bottom Pan

⑥ Holder

⑦ Cable Connector


On Extension Pole


On 12’’ Deep Base


On Approach Mast

Accessories/accessory tools

Downloads

Order Code

Date Sheet

Product Manuals

Certificate

ELE-SFLS&RTIL(L)-Elevated

DOWNlOAD FILES
