Runway Threshold Identification
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic





                             ▪    Support the emergency mode, flashing autonomously when the communication is interrupted

                             ▪    Support maintenance mode, The main control cabinet can be made offline to any separate control panel as the host independent work and debugging

                             ▪    Control cabinet LCD touch screen display, intuitive and easy to operate








Parameter




MECHANICS

Light Size



97mm×164.5mm×338.5mm



Control Box Size



430mm×355mm×195.8mm



Control Cabinet Size



599mm×600mm×1468mm



Range of Elevation Angle



0°～10°



Light Net Weight



3.3kg


ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Wind Loading


ELE-RTIL(L) ＞480km/h；    ELE-SFLS(L)＞240km/h

Protection Class (Dust/Liquids)

IP65 （IEC60598-1）

Humidity

0-100%

Altitude


Suitable for an altitude greater than 2500m

ELECTRICAL

Power Input


AC 220V(±10%)，50~60Hz



Light Color



White


Flashing Rate


60 or 120 per minute

Flash Interval


0.0167 second

Light Intensity

Low-intensity



150~450 cd


Medium-intensity


800~2000 cd


High-intensity


8000~20000 cd

































Exterior

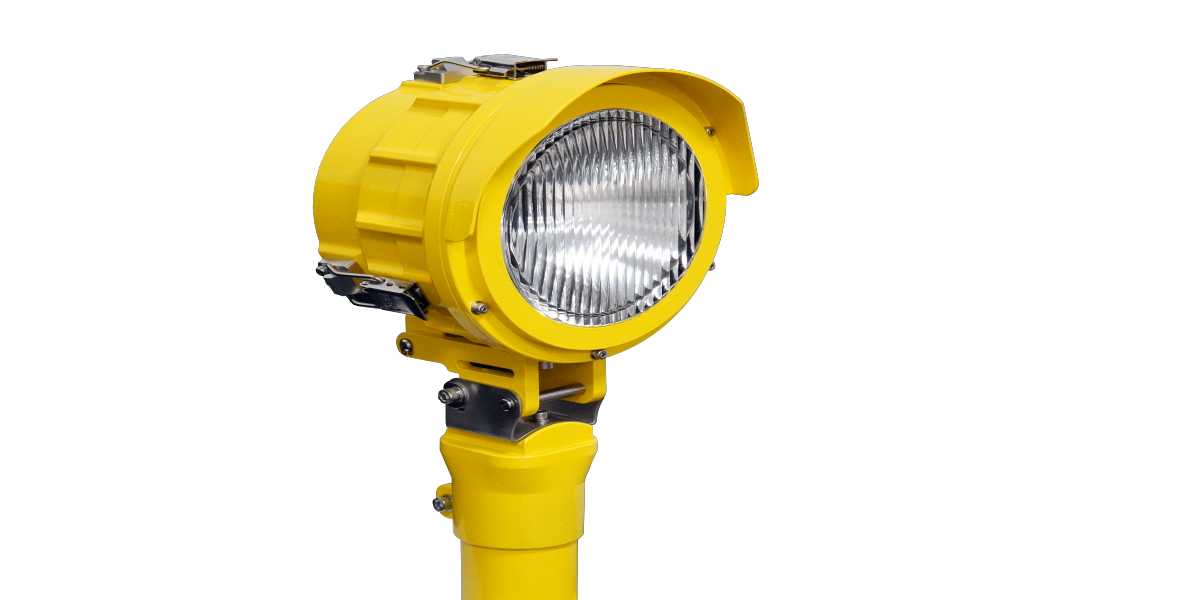

Elevated







Control Box








Control Cabinet

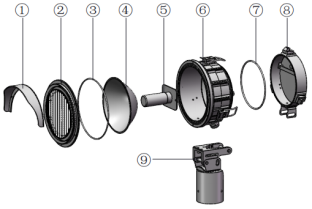

① Visor

② Front glass Module

③ Front  Seal Ring

④ Reflector

⑤ Light Source

⑥ Light Body

⑦ Rear Seal Ring

⑧ Rear Cover

⑨ Installation Adjustment Module






On Extension Pole











  On Approach Mast










Accessories/accessory tools
Downloads
Order Code
Date Sheet
Product Manuals
Certificate
ELE-SFLS&RTIL
DOWNlOAD FILES
