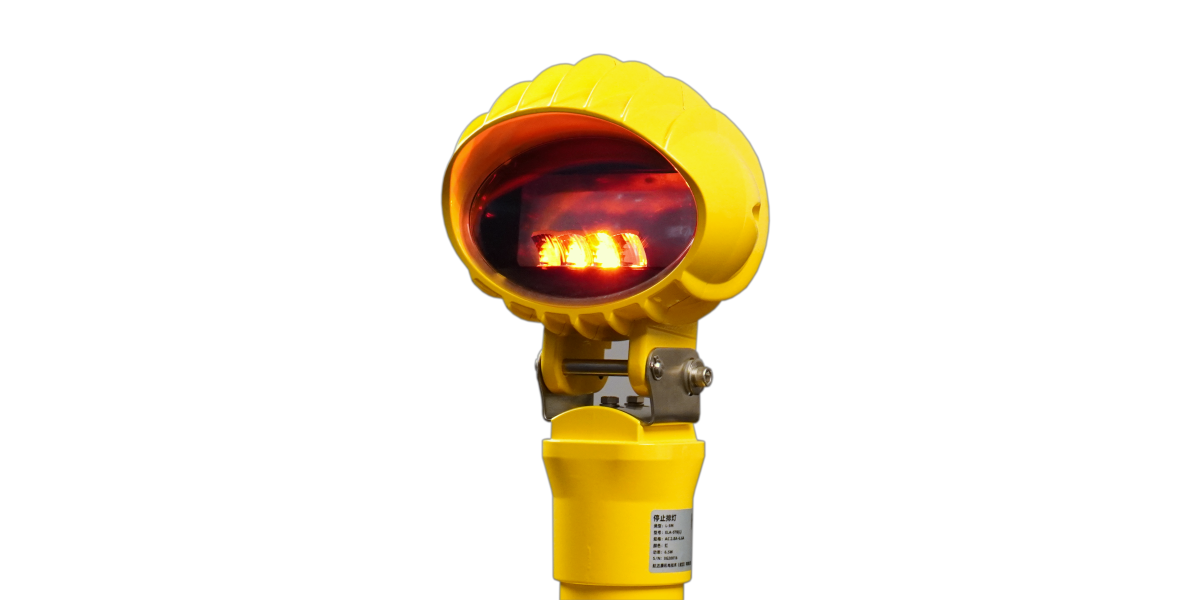

Runway End Light

Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code

Characteristic

▪ Unique optical system design, precision photometry, and high light efficiency

▪ Independent triaxial angle adjustment with calibration instrument, high precision.

▪ All optical and electrical components can be replaced independently and used in all series

Parameter

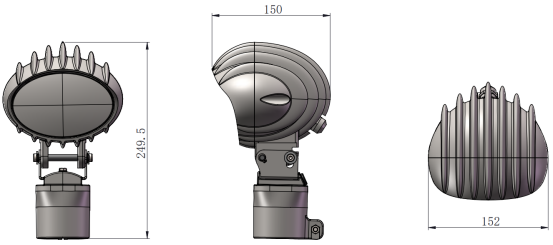

MECHANICS
Width		152mm
Height		249.5mm
Packing Dimensions		360mm×225mm×350mm ( 2pcs / Package )
Net Weight		2.9kg
Gross Weight		6.4kg ( 2pcs / Package )
ENVIRONMENTAL
Operating Temperature		-55℃-+55℃
Storage Temperature		-55℃-+85℃
Protection Class (Dust/Liquids)		IP67（IEC60598-1）
Humidity		0-100%
ELECTRICAL
Connection	FAA L823 Class A, TypeⅡ,Style 1, one Connector
Power Input	2.8-6.6Aeff AC
Power Factor (Nominal)	＞0.97
Power Consumption (Nominal)	THR-Green	18W
	TWB-Green	18W
	RWE-Red	10W
Fail Open	Manual reset
	Automatic reset


ELA-THR-Green


ELA-TWB-Green


ELA-RWE-Red


COLOR COORDINATES

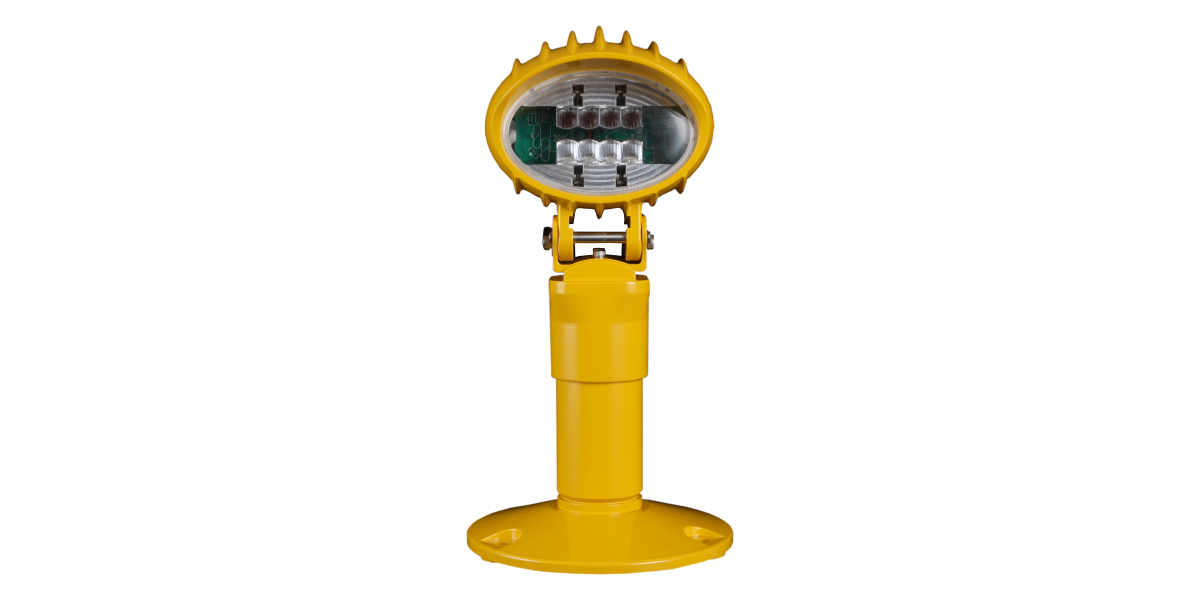

Exterior


① Front Cover

② Sealing Ring

③ Optic Module*

④ LED Driver Module

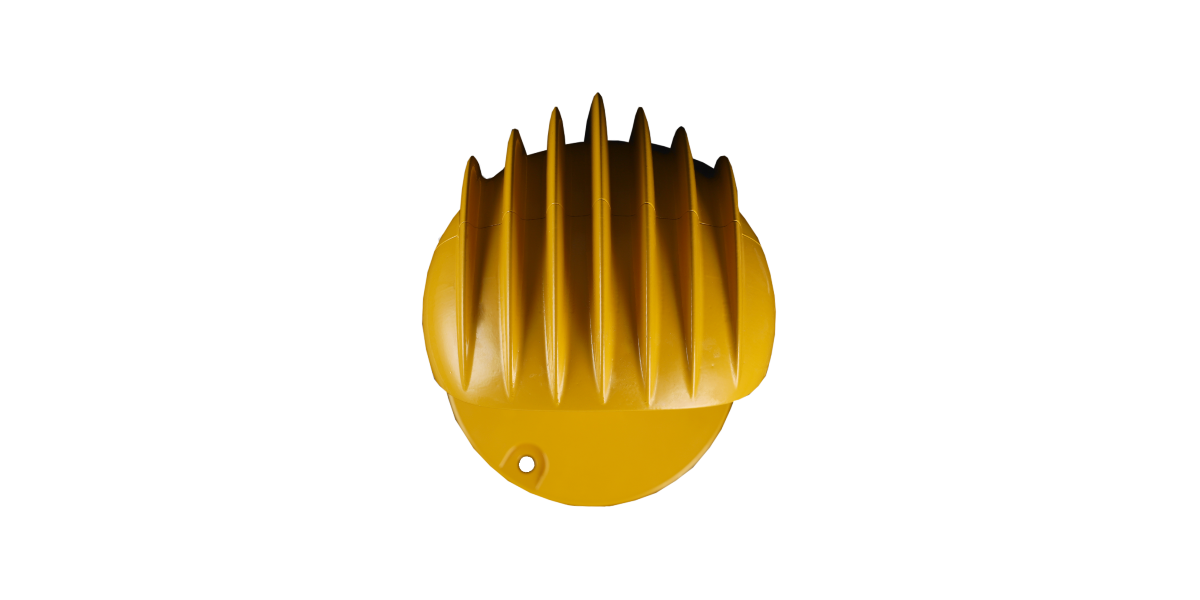

⑤ Back Cover

⑥ Power Supply Cable

⑦ Adjustable Installation Kit

*THR/TWB have 2 optic modules; RWE has 1 under optic module

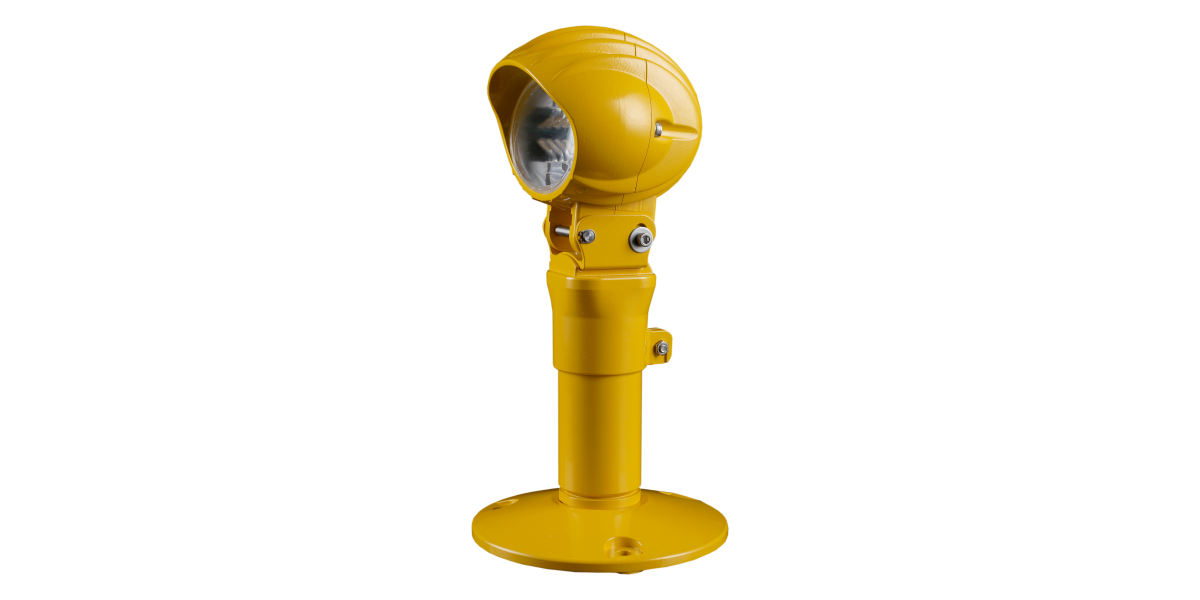

On Extension Pole


On 12’’ Deep Base

Accessories/accessory tools

Downloads

Order Code

ELA

Light Structure

ELA: Elevated Uni-directional Light

Function / Application

THR: Threshold Lights

TWB: Threshold Wing Bar Lights

RWE: Runway End Lights

Color- 1

G: Green, R: Red

Color- 2

N: No Output

Inputs

1: Single Input

2: Dual Input

Fail Open

FOM: Fail Open Manual-reset

FOA: Fail Open Automatic-reset

FON: No Fail Open

Coupling

0: No couping

1: Couping Ⅰ(140mm height)

2: Couping Ⅱ (Adjustable height )

Base plate

0: No base plate

1: Base plate Ø 187mm

2: Base plate Ø 304mm

Version

1: Version 1

ORDERING CODE NOTES

① We can provide color including

"R","G",

if you have any other requirements,we can customized.

② Coupling. Figure1 ③ Base plate. Figure2


Figure 1 Figure 2

Date Sheet

Product Manuals

Certificate

ELA-THR&TWB&RWE1
