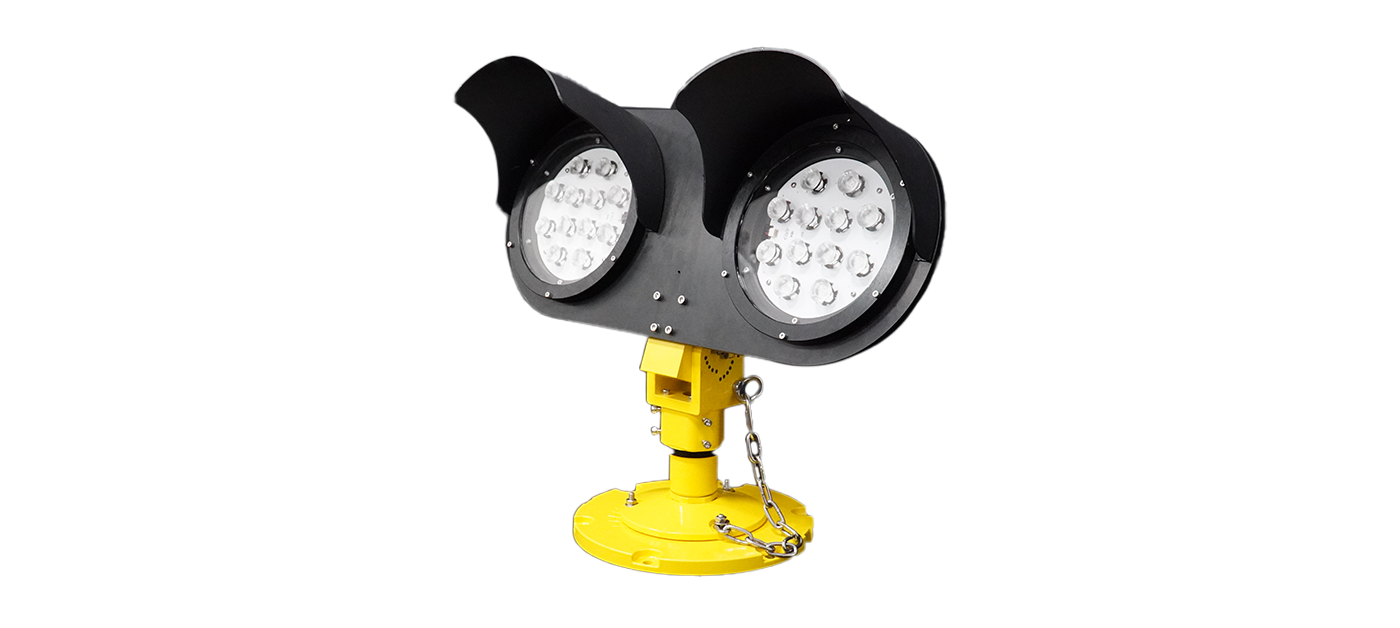

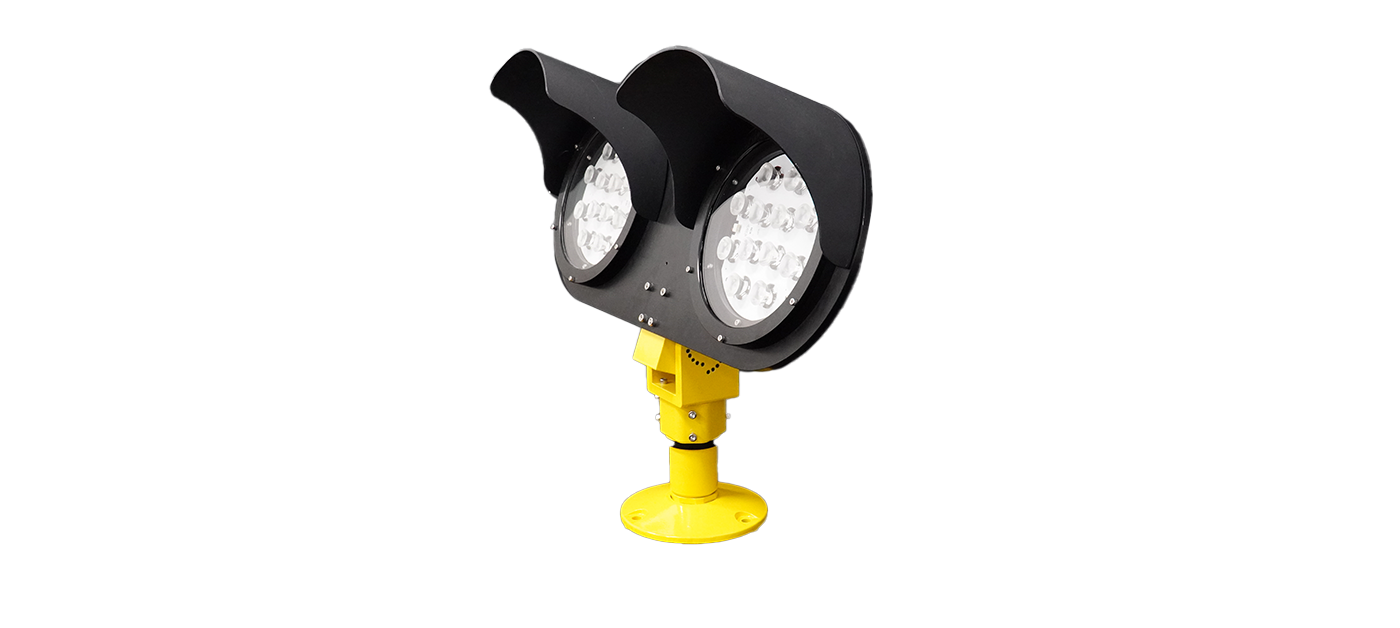

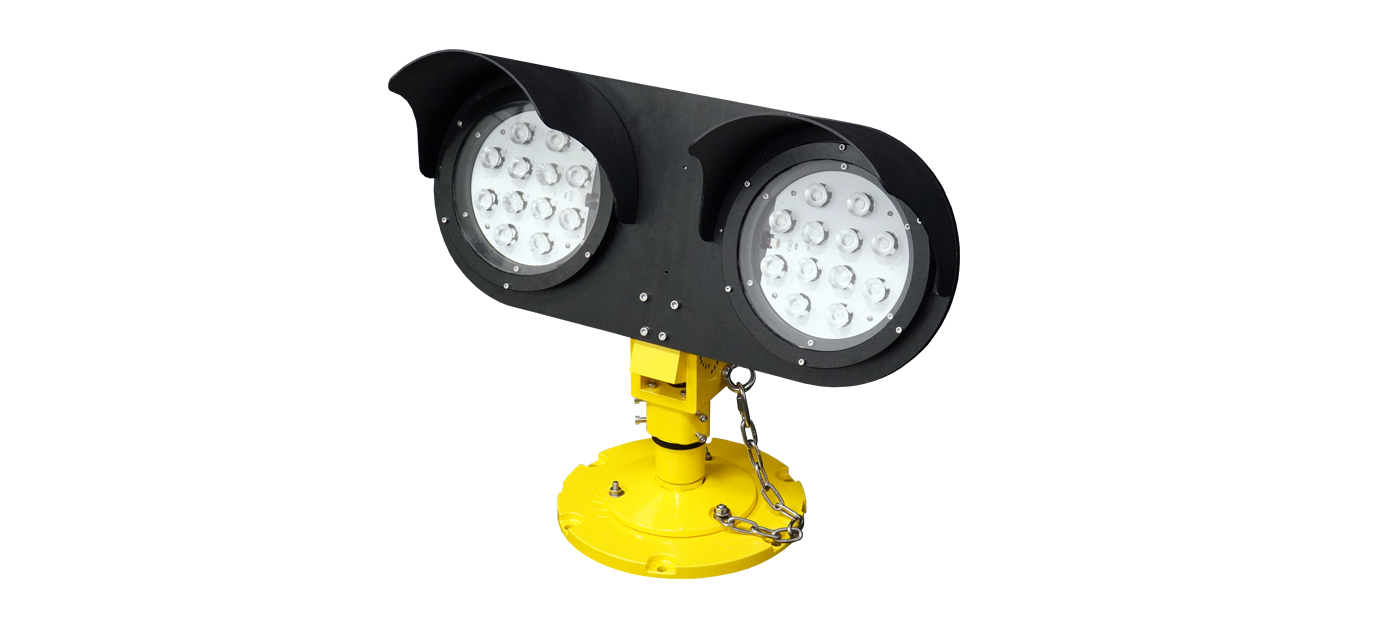

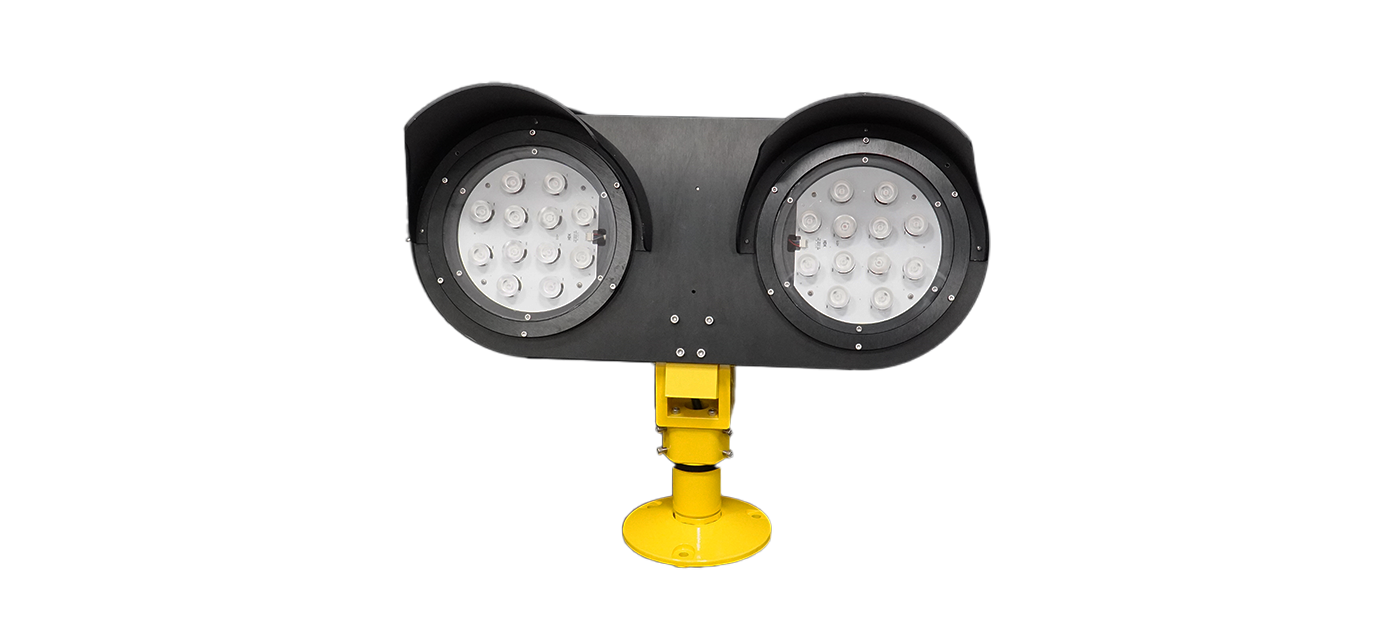

Runway Guard Light
Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code
Characteristic





                                ▪    Adopt the integrated aluminum alloy structure, mounting angle is adjusted independently, portable and stable structure


                             ▪  Energy storage module and photovoltaic module are optional, realize the long time of self-sustaining work after a power supply interruption




Parameter




MECHANICS

Width

665mm

Height

558mm

Net Weight

14.3kg

Packing Dimensions

700mmx500mmx500mm(2 set/Package)

ENVIRONMENTAL

Operating Temperature

-55℃-+55℃

Storage Temperature

-55℃-+85℃

Wind Loading

＞480km/h

Protection Class (Dust/Liquids)

IP68 （IEC60598-1）

Humidity

0-100%

ELECTRICAL

Connection

FAA L823 Class A, TypeⅡ,Style 1, one  Connector

Power Input

2.8-6.6Aeff AC

Flashing Rate


45~50 per minute

Power Factor (Nominal)

 ＞0.97

Power Consumption (Nominal)

23w






ELG-RGL-Yellow

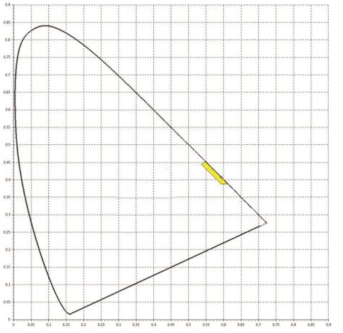

COLOR COORDINATES






Exterior







   ① Front glass Module

   ② Optic Module

   ③ Front Seal Ring

   ④ Visor

   ⑤ Main Plate

   ⑥ Rear Seal Ring

   ⑦ Drive Module

   ⑧ Rear Box and Cable

   ⑨ Installation Adjustment Module

   ⑩ Extension Pole

   ⑪ Flange

   ⑫ Chain

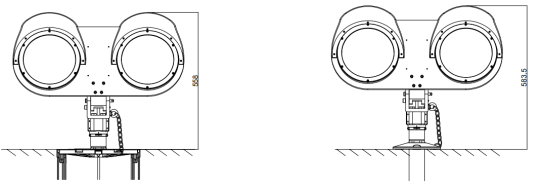

                                                            On 12’’ Deep Base                                                                On   Extension Pole








Accessories/accessory tools
Downloads
Order Code
Date Sheet
Product Manuals
Certificate
ELD-RGL(L)
DOWNlOAD FILES
