Intermediate Holding Position Light(inset)

Characteristic Parameter Exterior Accessories/accessory tools Downloads Order Code

Characteristic

▪ Ultra-Flat surface-Only 3.5mm above surface

▪ Configurable fail-open function, fail-open with automatic/manual reset is optional.

▪ Different types of single-light monitoring devices can be applied.

▪ The shallow fixture design fits the halogen light base.

▪ Modular design with the 8” inset fixture components - Any module can be replaced independently

Parameter

MECHANICS
Diameter		203mm
Flange Thickness		19mm
Height Above Surface		3.5mm
Static Load Resistance		20t
Shear Load Resistance		1.7t
Packing Dimensions		250mm×235mm×110mm
Net Weight		2.8kg
Gross Weight		3.1kg
ENVIRONMENTAL
Operating Temperature		-55℃-+55℃
Storage Temperature		-55℃-+85℃
Protection Class (Dust/Liquids)		IP68 （IEC60598-1）
Humidity		0-100%
ELECTRICAL
Connection	FAA L823 Class A, TypeⅡ,Style 6, one or two Connectors
Power Input	2.8-6.6Aeff AC
Power Factor (Nominal)	＞0.97
Power Consumption (Nominal)	TCLS-Green-S	6.5W	TCLC-Green-S	6.5W
	TCLS-Yellow-S	7.5W	TCLC-Yellow-S	7.5W
	TCLS-Yellow/Green-S	8.5W	TCLC-Yellow/Green-S	8.5W
	TCLS-Yellow/Yellow-S	9.5W	TCLC-Yellow/Yellow-S	9.5W
	TCLS-Green/Green-S	7.5W	TCLC-Green/Green-S	7.5W
	TCLS-Yellow/Green-D	7.5W/6.5W	TCLC-Yellow/Green-D	7.5W/6.5W
	TCLS-Yellow/Yellow-D	7.5W/7.5W	TCLC-Yellow/Yellow-D	7.5W/7.5W
	TCLS-Green/Green-D	6.5W/6.5W	TCLC-Green/Green-D	6.5W/6.5W
	STBS-Red	7W	STBC-Red	7W
	IHPS/DFELS-Yellow	7.5W	IHPC/DFELC-Yellow	7.5W
	RTPLS-Green	6.5W	RTPLC-Green	6.5W
Fail Open	Manual reset
	Automatic reset

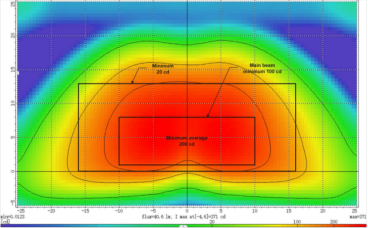

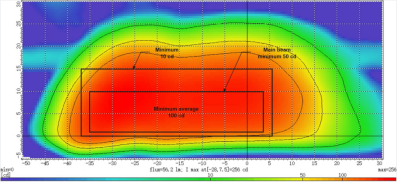

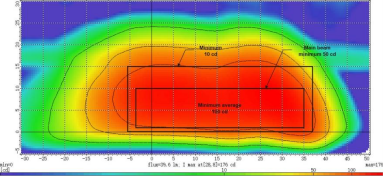

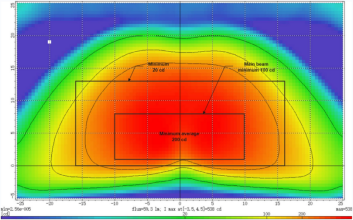

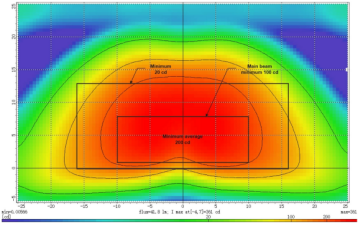

ILA-TCLS-Green


ILA-TCLS-Yellow


ILA-STBS-Red


ILA-TCLC-Green


ILA-TCLC-Yellow


ILA-STBC-Red


COLOR COORDINATES

Exterior


① TopCover

② Sealing Ring

③ Optic Module

④ Prism Holder

⑤ LEDDriver Module

⑥ BottomCover

⑦ Power SupplyCable


On 8’’ Shallow Base


On 12’’ Deep Base

Accessories/accessory tools

Downloads

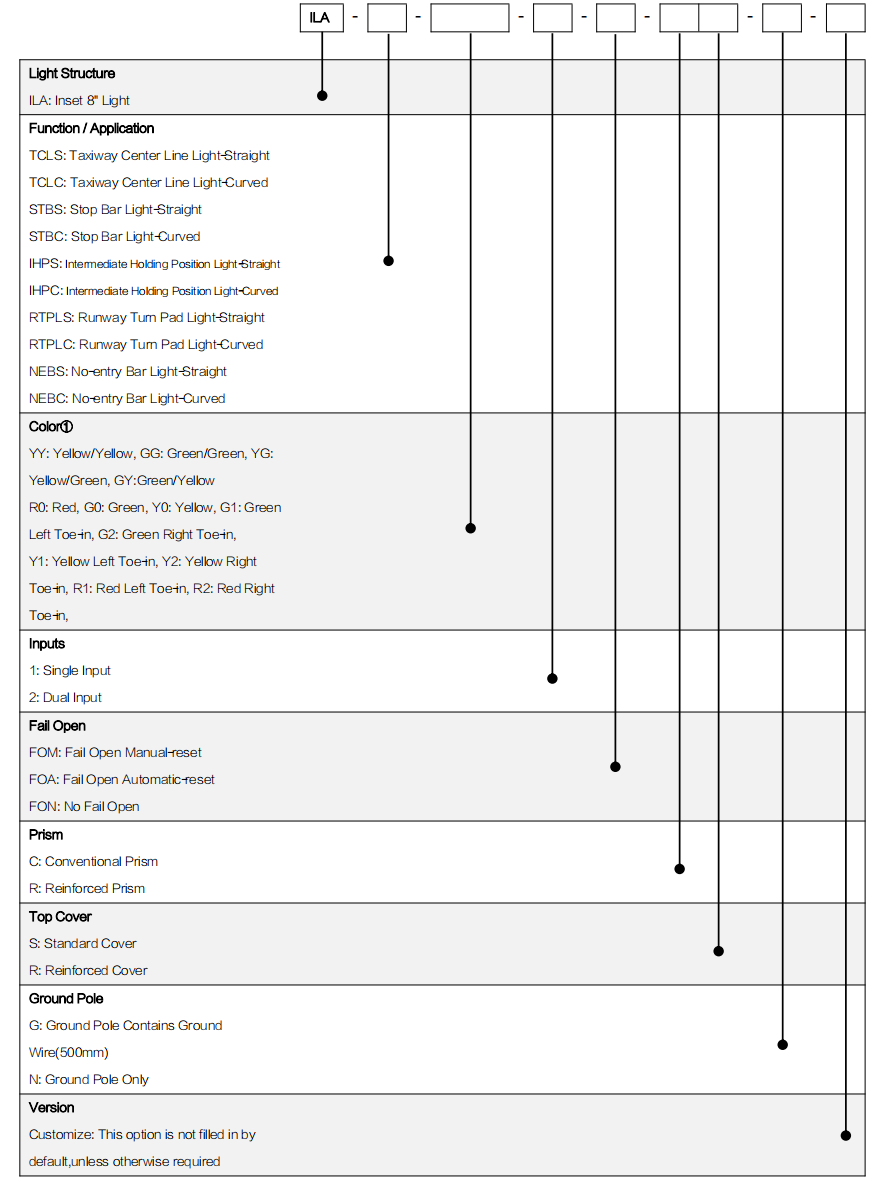

Order Code

Date Sheet

Product Manuals

Certificate

ILA-TCL&STB&IHP&DFEL&RTP

DOWNlOAD FILES
